CAMH-TANDEM | HERMETIC

CAMH-TANDEM | HERMETIC

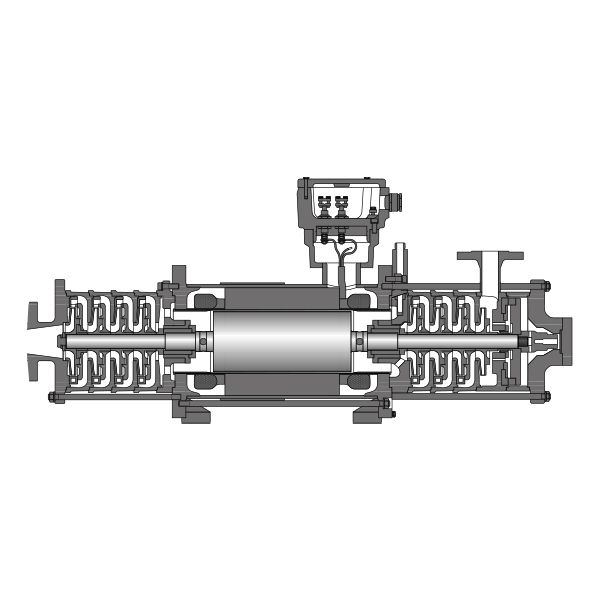

Very high pressure differences with compact design can be achieved with this set in which the stages are arranged on both sides of the canned motor. The total quantity pumped flows through the canned motor and at the same time carries away the motor heat losses. Since, as a result, no heated part of the delivery flows back to the suction side considerably more stable NPSH values are produced in the part load range. Aggregates of Tandem design can therefore be used for considerably smaller pumping capacities, than pumps of single-stage design.

Fiche Technique





Description

Industry:

CHEMICAL, OIL & GAS, POWER GENERATION

  • Multistage
  • Normal-suction design
  • Tandem design
  • With pressure barrel for high system pressures
  • Explosion protection according to Directive 2014/34/EU
    inkl. EC-type-examination certificate
    Marking: II 2 G Ex de IIC T1 to T6 (*)

Capacity:

max. 350 m³/h

Head:

max. 1200 m

Rotating speed:

2900 to 3500 rpm

Operating temperature:

–120 °C to +100 °C

Viscosity:

max. 300 mm²/s

Pressure rating:

up to PN 500
