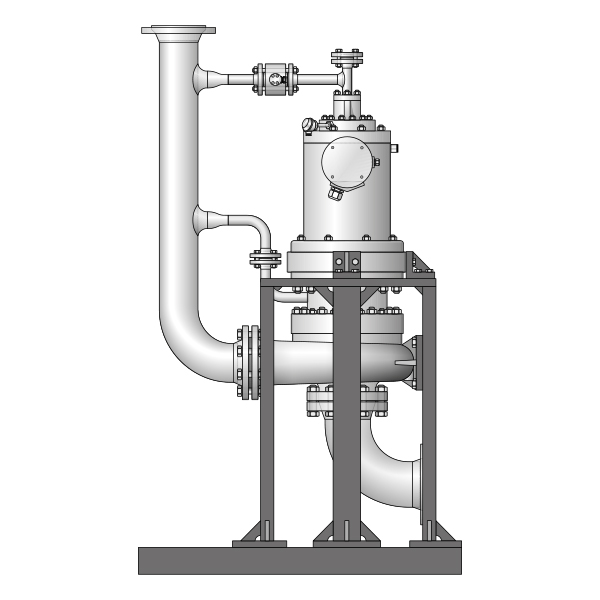

CNV & CNFV | HERMETIC
CNV & CNFV | HERMETIC
For the safe transport of aggressive, toxic, hot, explosive, valuable and flammable liquids and liquefied gases.
Fiche Technique
Description
Industry:
CHEMICAL, OIL & GAS, POWER GENERATION
- Single-stage
- Normal-suction design
- Design for pressure gases / liquefied gases
- In vertical installation
- Dimensions and performance curves in accordance with
EN 22858; ISO 2858 - Explosion protection according to Directive 2014/34/EU
inkl. EC-type-examination certificate
Marking: II 2 G Ex de IIC T1 to T6 (*)
Capacity:
max. 1600 m³/h
Head:
max. 220 m
Rotating speed:
1450 to 3500 rpm
Operating temperature:
–120 °C to +120 °C
Viscosity:
max. 300 mm²/s
Pressure rating:
PN 16 and PN 25
