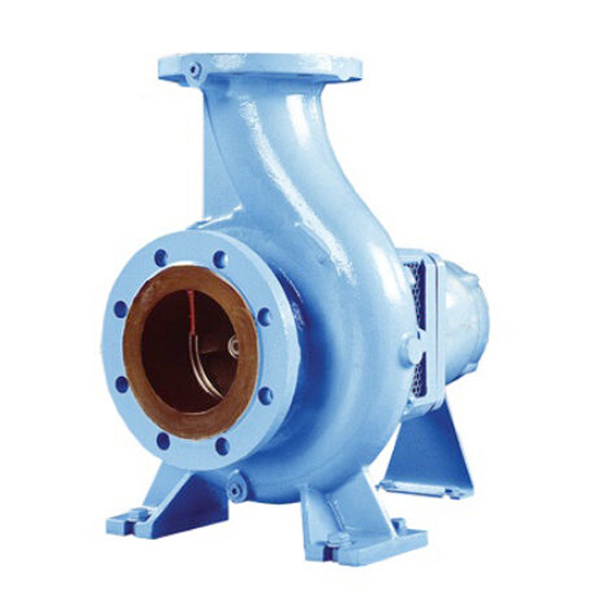

ISOGLIDE – SINGLE STAGE, END SUCTION PUMP | CELEROS

ISOGLIDE – SINGLE STAGE, END SUCTION PUMP | CELEROS

The ClydeUnion Pumps Isoglide range of end suction pumps complies with international standard ISO 2858.





ISOGLIDE - SINGLE STAGE, END SUCTION PUMP | CELEROS

Description

The ClydeUnion Pumps Isoglide range of horizontal long coupled or close coupled ISO 2858 standard pumps is an established end suction design range:

  • 32 individual pump frame sizes divided into 4 modular shaft groupings
  • Numerous sealing options available
  • Back pull-out design allows for easy removal of the pump rotating element without disturbing the pipework ensuring ease of maintenance
  • Material options available for non-corrosive and corrosive applications including seawater
  • Designed for both 50Hz and 60Hz markets

Technical data

Capacity Flow up to: 4,400 USgpm 1,000 m3/hr
Delivery Head up to: 670 ft 200 m
Temperature up to: 250°F 120°C
Speeds up to: 3,600 rpm
Flange drilling: ANSI or BS

Applications

  • Desalination
  • Water treatment, supply and distribution
  • District heating and district cooling
  • Power auxiliaries
  • Mining
  • Metal manufacturing
  • Chemical and petrochemical industries
  • General industrial applications
  • Building services
  • Irrigation
  • De-watering
