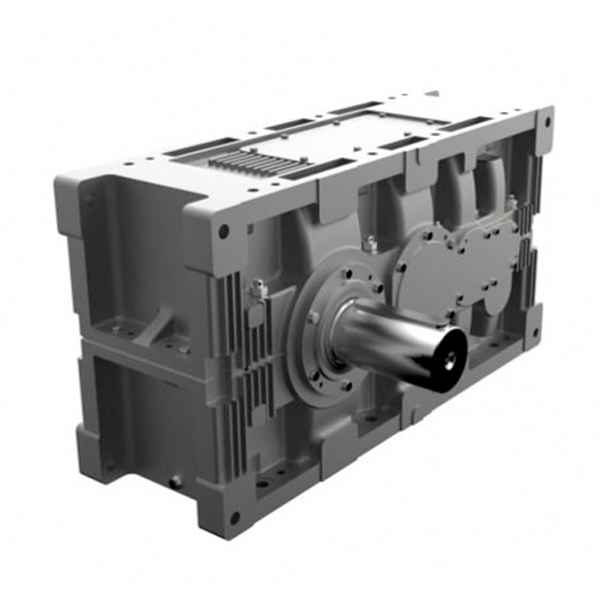

SERIES E (EON & EOS) INDUSTRIAL REDUCER | RADICON
SERIES E (EON & EOS) INDUSTRIAL REDUCER | RADICON
The Series E Industrial gear unit is designed to meet the requirements of the most demanding applications in the medium and heavy duty sectors of the power transmission market.
Fiche Techique
Description
The Series E Industrial gear unit is designed to meet the requirements of the most demanding applications in the medium and heavy duty sectors of the power transmission market. The modern design and construction of the Series E offers many engineering and performance benefits including higher torque and thermal ratings, with a high degree of interchangeability of components. The gear housing has been designed to withstand the normal forces whilst reducing weight to the ideal level leading to the most optimal industrial gear unit solution available.
An unrivalled depth of application expertise stretching back over 150 years has enabled us to introduce the most optimum solution for your drive requirements: Series E.
Available with dedicated foot mounted case Version EON, which gives the optimum torque/lb rating, or with multimount case Version EOS giving flexibility on mounting options.
PRODUCT OPTIONS
| Unit Sizes | 11, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26 |
| Types | Parallel shaft: Single, Double, Triple and Quadruple reduction Right angle shaft: Double, Triple and Quadruple reduction |
| Input Power | Up to 6,470 HP (4825 kW) |
| Output Torque | Up to 1,168,200 lb.in (132,000 Nm) |
| Gear Ratios | 1.25/1 to 550/1 in multistage |
FEATURES & BENEFITS
| Features | Benefits |
|---|---|
| Optimum case design Version EON | Lower weight, reducing material, giving market leading torque per lb |
| Split case design Version EON | Ease of maintenance and the ability to repair without removal of the unit |
| Multimount case option Version EOS | Flexibility on mounting options |
| Additional Cooling Fins | Higher Thermal Ratings |
| Rigid flange output option | Ease of assembly, reduces alignment issues |
| Labyrinth Sealing as Standard | Improved sealing in harsh environments |
| Spherical roller bearings throughout (taper roller bearings on bevel pinion shaft) | Provides longer life |
| Available with an external backstop | Easy access for maintenance and change of direction |
| Atex compliant | Can be supplied against Group 2 or 3 for surface industries in designated hazardous locations, zones 1 & 2 for gases, vapours and mist, zones 21 & 22 for dust. |
