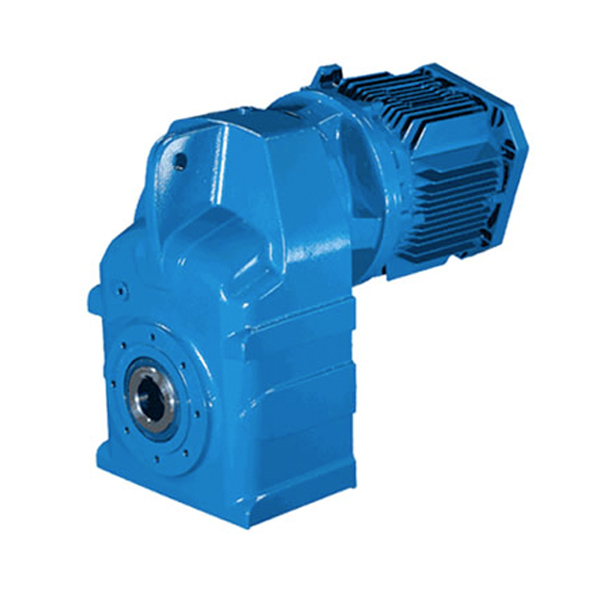

SERIES F SHAFT MOUNTED HELICAL GEARED MOTOR | RADICON
SERIES F SHAFT MOUNTED HELICAL GEARED MOTOR | RADICON
Series F geared motors and reducers form part of a shaft mounted unit solution along with our integral torque reaction bracket.
Fiche Technique
Description
Series F geared motors and reducers offer a shaft mounted solution with an integral torque reaction bracket.
The units are also available with rubber torque bushings, output flanges, shrink disc bores, solid output shafts and KIBO® sleeves to allow for trouble free maintenance.
These units are manufactured and assembled from a family of modular kits for distributor friendliness thereby minimizing inventory and making the product readily available.
Can be supplied as double, triple, quadruple and quintuple reduction units in flange or shaft mount execution. Available as motorized, motor ready (to accept clients own NEMA/ IEC motor) or as a reducer with a keyed input shaft.
All gear cases are cast iron.
PRODUCT OPTIONS
| Unit Sizes | 02, 03, 04, 05, 06, 07, 08, 09, 10 |
| Input Power | Up to 50 HP (45 kW) |
| Output Torque | Up to 71,000 lb.in (8,000 Nm) |
| Gear Ratios | From 6.3/1 to 360/1 up to Triple reduction and up to 3600/1 in combined unit |
| Motor Sizes | NEMA frames from 56 to 440 and IEC Frames from 63 to 315. |
FEATURES & BENEFITS
| Features | Benefits |
|---|---|
| Accepts standard NEMA/IEC motors | Fast and low cost motor replacements readily available |
| Dimensionally Interchangeable with the market leaders | No modification required when replacing existing gear unit |
| High ratio combinations in double reductions | Initial purchase price cost savings and energy efficiency savings |
| Motors fitted without modification | Saves time when replacing failed motors |
| Oil tight gear head | Enables motor removal without oil spillage |
| Versatile mounting | Shaft mounting or foot mounting with same gearbox |
