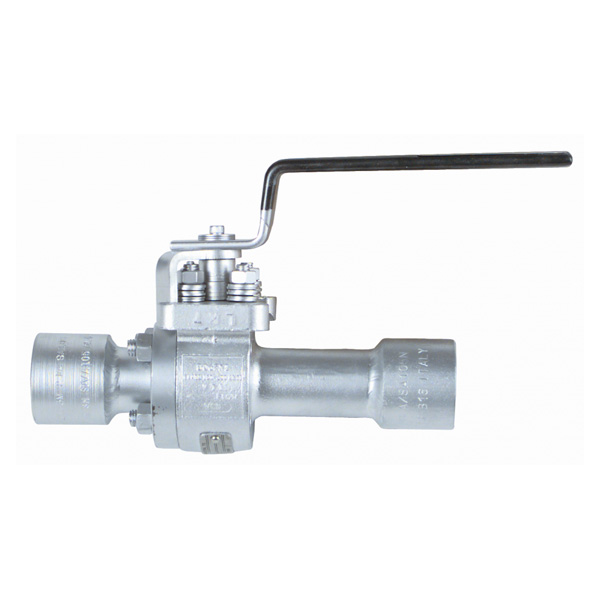

ValvTechnologies’ investment cast version of the V1-1 severe service isolation valves pay off in low-pressure drain applications with the elimination the typical high-maintenance linear valves and allows the customer to take advantage of the benefits that come standard with the zero-leakage warranty, ensuring long service life. The V1-3 is available in both full and reduced-port models and, like all of our V series products and just as important, our HVOF RiTech® hard coatings enables the same critical mate lapped sealing surfaces – making it impervious to erosive, corrosive and abrasive services.

Fiche Technique



Description

Sizes
1/2 – 2″
Pressure Classes

ASME / ANSI Class 150 – 600

Materials of Construction

Carbon steel (A216 WCB) – standard
Alloy steel (A217 WC9) – standard
Stainless steel (A351 CF8M) – standard
Duplex steel
Exotic alloys
Other materials available upon request

In Compliance

ASME B16.34
PED
Nuclear ASME III Class 1, 2 and 3
Nuclear Safety Related – 10CFR50 Appendix B
SIL

End Connections

Socketweld – standard
Buttweld – standard
Other end connections available upon request

Shutoff

Absolute zero-leakage shutoff
