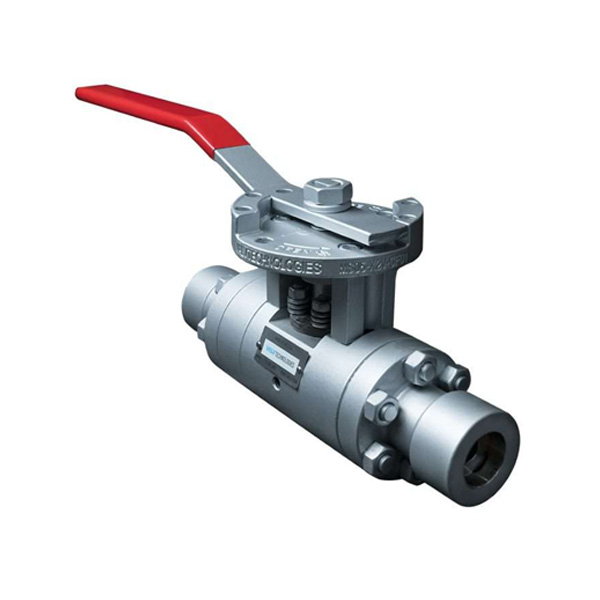

ValvTechnologies V Series valves are engineered to be leak-free and have a position-seated design, ensuring optimal flow while reducing overall cost of ownership. The new V1-R valve has a 4-piece assembly that allows for removal of the valve body and end cap, while the end connections remain in-line. Maintenance can now be made without the need for cutting or welding.

The new V1-R: experience enhanced performance, reduced downtime, and seamless service, all in one innovative solution.

Fiche Technique



Description

Sizes
5/8” – 4”
Pressure Classes

ASME / ANSI Class 3100

Materials of Construction

Carbon steel (A105) – Standard
Alloy steel (F22, F91) – Standard

In Compliance

ASME B16.34
PED
Nuclear ASME III Class 1, 2 and 3
Nuclear Safety Related – 10CFR50 Appendix B
SIL

End Connections

Socketweld, Buttweld – Standard

Shutoff

Absolute Zero-Leakage Shutoff
