Description

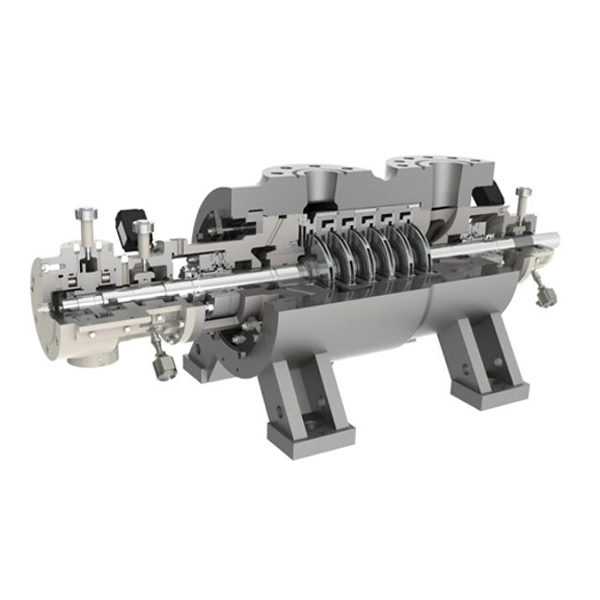

The ClydeUnion Pumps CUP-BB5HP encompasses heavy duty, radially split diffuser type, multi-stage pumps available in two configurations: inline or back-to-back impeller arrangements. Both of which are designed as engineered-to-order solutions and manufactured to the latest edition of API 610 and API 682.
The full ClydeUnion Pumps CUP-BB5HP range offers proven design history, evolving from our legacy OK and HMBS machines to provide the industry with a very comprehensive hydraulic coverage, and optimum efficiency levels.
The advanced design of the CUP-BB5HP includes key features such as our pioneering Shear Ring cartridge locking system which enables rapid withdrawal of all the pump internals as a cartridge without disturbing pump alignment or pipework. This greatly reduces the time required to maintain the equipment compared to conventional methods.
Technical data CUP-BB5 HP:
| Capacity | up to: | 12,330 USgpm | 2,800 m3/hr |
| Delivery | up to: | 13,450 ft | 4,100 m |
| Temperature | up to: | 350°F | 180°C |
| Speeds | up to: | 6,600 rpm | |
| Flange drilling: | ANSI or BS |
Applications
- Produced water injection
- Seawater injection
- Flowline displacement
- Main oil lines
