V1-2 | VALVTECHNOLOGIES

V1-2 | VALVTECHNOLOGIES

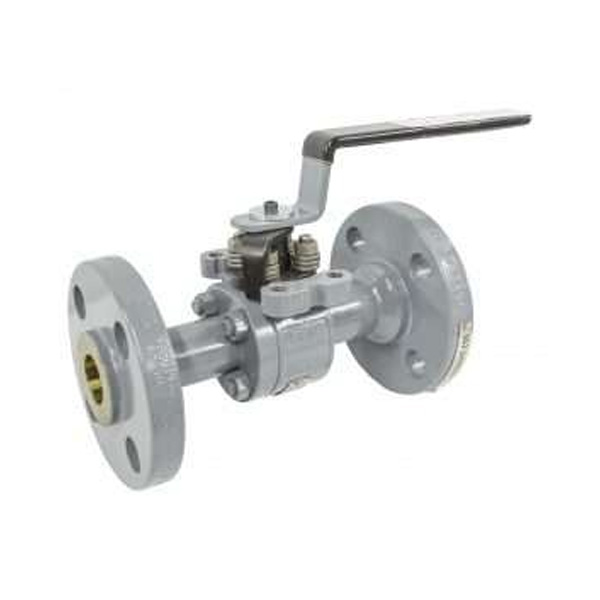

Get outstanding flexibility and reliability in the lower pressure class rage.  ValvTechnologies V1-2 flanged valves come in more sizes – you can put superior performance and long life where they are needed, in virtually any cast or forged material. Specify them with special end connections. Order them with the purge ports you need – and cavity fillers, cryogenic stem extensions, fugitive emission bonnets…all these options can be added to the valves that feature HVOF RiTech® hard coatings as standard – and absolute zero-leakage warranty.

Fiche Technique



Description

Sizes
½ – 36″
Pressure Classes

ASME / ANSI Class 150 – 600

Materials of Construction

Carbon steel (A216 WCB) – standard
Stainless steel (A351 CF8M) – standard
Duplex steel
Exotic alloys
Other materials available upon request

In Compliance

ASME B16.34
PED
Nuclear ASME III Class 1, 2 and 3
Nuclear Safety Related – 10CFR50 Appendix B
SIL

End Connections

Raised face flange – standard
Other end connections available upon request

Shutoff

Absolute zero-leakage shutoff
