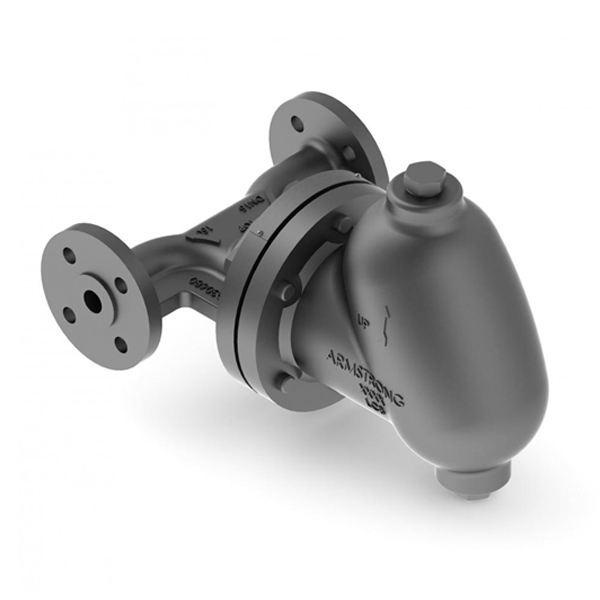

Armstrong ICS Series Float & Thermostatic steam traps are for industrial service from 0 to 465 psig (32 bar). The simple yet rugged construction of the ICS series carbon steel float and thermostatic trap is designed to assure long, trouble-free service.
Fiche Technique
Description
Armstrong ICS Series Float & Thermostatic steam traps are for industrial service from 0 to 465 psig (32 bar). The simple yet rugged construction of the ICS series carbon steel float and thermostatic trap is designed to assure long, trouble-free service.
The ICS Float and Thermostatic steam trap is used for continuous drainage of condensate and high-capacity venting of air and CO2, when steam pressure may vary from maximum steam supply pressure to vacuum.
Armstrong ICS Float & Thermostatic steam traps are available with flanged connections of 150RF, 300RF & PN40RF, socket weld and screwed connections in 1/2’’, 3/4’’, 1’’, 1-1/2’’ and 2’’ sizes for the maximum operating pressure range of 75 psig (5 barg) to 465 psig (32 barg).
PRODUCT SPECIFICATIONS
| Model | ICS | ICS PN40 | ICS V |
| Capacities To | 60000 lb/hr (27215 kg/hr) |
60000 lb/hr (27215 kg/hr) |
60000 lb/hr (27215 kg/hr) |
| Maximum Allowable Pressure | 580 psig (40 bar) |
580 psig (40 bar) |
580 psig (40 bar) |
| Maximum Allowable Temperature | 650°F (343°C) |
650°F (343°C) |
650°F (343°C) |
| Body Material | ASTM A352 Grade LCB Carbon Steel |
ASTM A352 Grade LCB Carbon Steel |
ASTM A352 Grade LCB Carbon Steel |
| Maximum Operating Pressure | 465 psig (32 bar) |
465 psig (32 bar) |
465 psig (32 bar) |
| Connection Type | Screwed, Socketweld, Flanged |
Flanged | Screwed, Socketweld, Flanged |
| Connection Size | 1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/2″ (40 mm) 2″ (50 mm) |
1″ (25 mm) 1-1/2″ (40 mm) 2″ (50 mm) |
1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm) 1-1/2″ (40 mm) 2″ (50 mm) |
