IGCC – Ready and Able

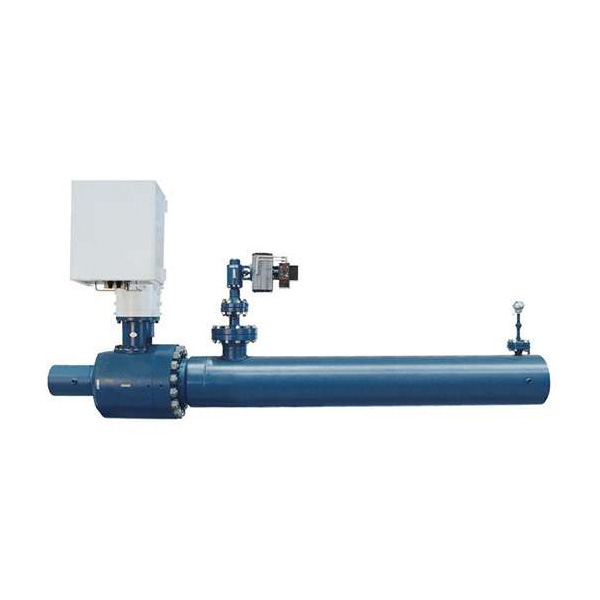

Now keep gas turbine and heat recovery system generator (HRSG) online in the event of a steam turbine trip with the ValvTechnologies’ turbine bypass system (TBS).



Description

Purposefully designed for the new generation of combined-cycle power plants, our TBS combines the proven XactrolL® severe service control valve design with a state-of-the-art de-superheating control system. At the same time, the TBS facilitates fast HRSG and CT start-ups in peaking power plants. and helps these plants operate at turndown conditions far below the levels that can be achieved with standard governor systems.

Turbine bypass

Sizes
4 – 24 “
Pressure Classes

ASME / ANSI Class 150 – 4500

Materials of Construction

Carbon steel (A105, A216 WCB) – standard
Alloy steel (F22, F91, A217 WC9, A217 C12A) – standard
Stainless steel (316H, A351 CF8M) – standard
Duplex steel
Exotic alloys
Other materials available upon request

In Compliance

B16.34 PED N & NPT – Nuclear Authorized

End Connections

Buttweld – standard
Raised-face flange – standard
Other end connections available upon request

Shutoff

Zero-leakage
